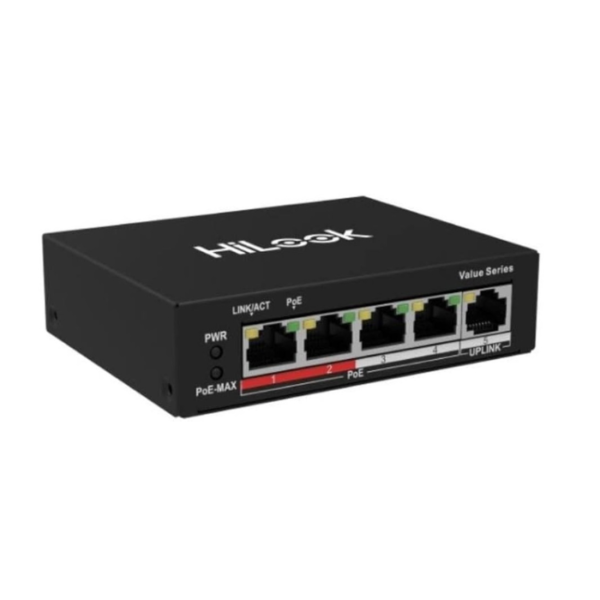

HiLook NS-0105P-35(B) 5-Port PoE Switch | 35W Fast Ethernet | Krazy Tech Deals
The HiLook NS-0105P-35(B) delivers a compact, unmanaged PoE switching solution designed for small CCTV and intercom installations. Featuring 4 x 100 Mbps PoE ports plus 1 x 100 Mbps uplink port, it provides a 35W total PoE power budget across all connected devices. Equipped with extended transmission support up to 250 metres, it suits longer cable runs common in residential and light commercial setups. All ports include 6kV lightning protection, and MAC address auto-learning with auto-aging ensures reliable plug-and-play operation.
Key Features
- 4 PoE Ports:Â 4 x 100 Mbps PoE ports for powering connected cameras or intercom devices.
- 35W PoE Budget:Â Total 35W power budget shared across all active PoE ports.
- 1 Uplink Port:Â 1 x 100 Mbps uplink port for connection to a router or NVR.
- Long-Range Transmission:Â Supports cable runs up to 250 metres for extended installations.
- Lightning Protection:Â All ports feature 6kV surge protection to guard against electrical damage.
- Plug-and-Play:Â Unmanaged design with MAC address auto-learning and auto-aging for zero-configuration setup.
$50.00
Description
Power and connect your PoE devices with the HiLook NS-0105P-35(B) 5-Port Fast Ethernet PoE Switch. Designed for reliable network connectivity, this compact unmanaged switch features 4 PoE Fast Ethernet ports and 1 uplink port, making it ideal for IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at compatible devices.
With a 35W total PoE power budget, 250m long-range transmission mode, and 6kV lightning protection, this switch provides dependable performance for homes, offices, retail stores, warehouses, and small business networks. Its plug-and-play operation eliminates complex configuration, making installation quick and hassle-free.
Key Features
4 PoE Ports with Power & Data
Four Fast Ethernet PoE ports deliver both power and network connectivity over a single Ethernet cable, reducing installation costs and cable clutter.
35W Total PoE Power Budget
Supports IEEE 802.3af and IEEE 802.3at standards with a combined power budget of 35W, suitable for powering multiple PoE devices simultaneously.
Long Range Transmission up to 250m
Extended transmission mode supports cable runs of up to 250 metres, making it ideal for devices installed further away from your network equipment.
Built-in 6kV Surge Protection
Integrated lightning and surge protection helps safeguard connected equipment from electrical surges and unstable power conditions.
Plug-and-Play Installation
No software or network configuration required. Simply connect your devices and start using the switch immediately.
Silent Fanless Design
The fanless enclosure operates silently, making it suitable for offices, reception areas, retail environments, and home installations.
Why Buy the HiLook NS-0105P-35(B)?
The HiLook NS-0105P-35(B) combines reliable PoE performance, extended transmission distance, and easy installation in one compact device. Whether you’re expanding a home network or deploying PoE devices in a commercial environment, this switch delivers dependable connectivity without the complexity of managed networking.
Its compact desktop design fits neatly into cabinets, shelves, or workstations while requiring virtually no maintenance.
Ideal Applications
The HiLook NS-0105P-35(B) is suitable for:
- IP Camera Systems
- Wireless Access Points
- VoIP Phones
- Smart Home Devices
- Small Business Networks
- Retail Stores
- Offices
- Warehouses
- Network Expansion Projects
- Home Networking
Technical Specifications
| Specification | Details |
|---|---|
| Model | NS-0105P-35(B) |
| Brand | HiLook |
| Total Ports | 5 |
| PoE Ports | 4 × 10/100 Mbps |
| Uplink Port | 1 × 10/100 Mbps |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Total PoE Budget | 35W |
| Maximum Transmission Distance | Up to 250m (Extended Mode) |
| Standard Ethernet Distance | 100m |
| Surge Protection | 6kV |
| Switching Type | Unmanaged |
| MAC Address Learning | Auto Learning & Auto Aging |
| Cooling | Fanless |
| Installation | Desktop |
What’s Included
- 1 × HiLook NS-0105P-35(B) PoE Switch
- User Documentation
Buying Guide
Choose this switch if you need:
- Up to four PoE network connections
- Reliable Fast Ethernet performance
- Long-distance cable support
- Easy plug-and-play installation
- Silent operation
- Compact desktop design
Consider a higher-capacity model if you require:
- More than four PoE devices
- Gigabit Ethernet speeds
- Advanced network management features
- Higher PoE power output
Frequently Asked Questions
Does this switch support all PoE devices?
Yes. It supports IEEE 802.3af and IEEE 802.3at compliant PoE devices including IP cameras, wireless access points, VoIP phones, and other compatible equipment.
How many PoE devices can I connect?
The switch includes four PoE ports. The number of devices depends on the total power consumption, which must remain within the 35W PoE budget.
Does the switch require any setup?
No. The NS-0105P-35(B) is an unmanaged switch, so simply connect your Ethernet cables and it will begin operating automatically.
What is the maximum cable distance?
Standard Ethernet connections support up to 100 metres. Extended mode increases transmission distance to up to 250 metres for compatible applications.
Is the switch silent?
Yes. The fanless design ensures completely silent operation.
Can I use this switch for home or office networking?
Absolutely. It is suitable for home users, small businesses, retail shops, offices, warehouses, and other environments requiring reliable PoE connectivity.
