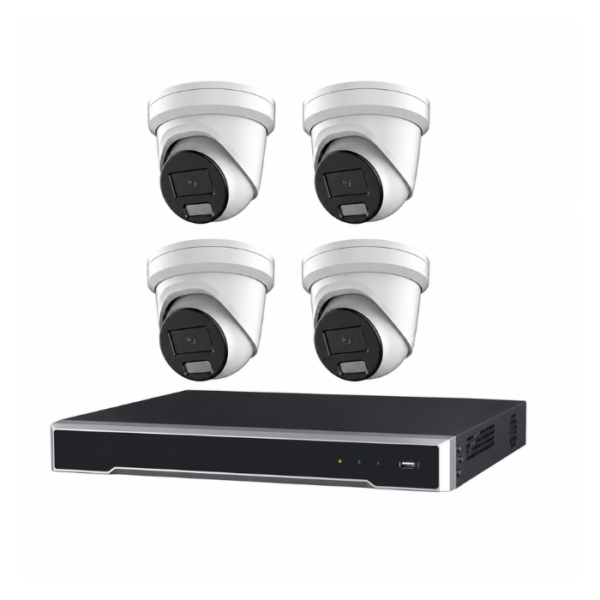

Hikvision 6MP 4CH ColorVu 3.0 CCTV Kit: 4 LiveGuard Turret Cameras + 4CH M Series PoE NVR (DS-2CD2367G3-LIS2UY/SL, DS-7604NI-M1/4P)

Combining active deterrence, full-colour night imaging, and AcuSense 3.0 detection in a single plug-and-play system, this Hikvision 4-camera CCTV kit is designed for homes and small businesses that need more than passive recording. The kit pairs 4 x DS-2CD2367G3-LIS2UY/SL 6MP ColorVu 3.0 Smart Hybrid Light turret cameras with the DS-7604NI-M1/4P 4-channel PoE NVR, delivering a complete outdoor surveillance setup through a single Cat5e/Cat6 run per camera. Each turret camera captures 6MP imagery at a minimum illumination of 0.0005 Lux using an F1.0 aperture lens, with automatic switching between infrared and white light based on scene conditions. Built-in strobes, speakers, and dual microphones allow real-time audio warnings and two-way communication. The NVR connects and powers all 4 cameras over PoE, supports remote viewing through Hik-Connect, and accepts up to a single HDD for local storage. This kit ships without a hard drive, allowing buyers to select the appropriate storage capacity separately.

Key Capabilities

Best For

• Residential Driveways and Entry Points: The 2.8mm lens covers 108.8 degrees horizontally, providing broad driveway coverage, while the Smart Hybrid Light ensures full-colour footage day and night.
• Shopfronts and Small Commercial Sites: AcuSense 3.0 reduces false alerts in busy street environments, and the active strobe and speaker can warn loiterers before an incident escalates.
• Small Business Perimeters: IP67 and NEMA 4X weather ratings allow installation on exposed outdoor walls, eaves, and soffits at warehouses, workshops, and small yards needing up to 4 monitored positions.
• Sites Needing Audible Warnings: The built-in speaker supports triggered audio warnings through the NVR, making this kit suitable for unmanned or after-hours locations where a visible and audible response is needed.
• Buyers Selecting Their Own Storage: The NVR ships without an HDD, allowing installers or end users to choose the correct surveillance-grade drive capacity for their expected recording duration and retention requirements.

Why Choose the DS-2CD2367G3-LIS2UY/SL and DS-7604NI-M1/4P Kit

This kit steps beyond basic recording by combining detection intelligence, active response, and full-colour imaging in a single system. The DS-2CD2367G3-LIS2UY/SL cameras deliver ColorVu 3.0 imaging with an F1.0 lens and 0.0005 Lux sensitivity, meaning colour detail is retained in conditions where standard cameras would produce dark or monochrome footage. AcuSense 3.0 ensures that triggers from pets, wind-blown foliage, or passing headlights are separated from genuine human and vehicle events. The built-in strobe, speaker, and dual microphone on each camera go beyond what a passive recording camera can offer. A simpler or cheaper camera would provide none of these deterrence or detection capabilities. The DS-7604NI-M1/4P NVR handles all 4 cameras over PoE without needing a separate switch, keeping installation straightforward. This kit is available at Security Wholesalers with lens options of 2.8mm or 4mm selectable per camera position.

Package Inclusions

• 4 x Hikvision DS-2CD2367G3-LIS2UY/SL 6MP ColorVu 3.0 Smart Hybrid Light Turret Camera – 6MP, 2.8mm or 4mm fixed lens, IR + white light up to 30m, built-in dual mic, built-in strobe and speaker, IP67, NEMA 4X
• 1 x Hikvision DS-7604NI-M1/4P 4CH PoE NVR – 4 PoE ports, HDMI and VGA output, 1 HDD bay, GUI 4.0, up to 128 Mbps incoming bandwidth, no HDD included
• Without HDD: please select your hard drive requirements at checkout

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this kit if: You need full-colour night vision, active deterrence with strobe and speaker, two-way audio, and AcuSense human and vehicle detection across 4 outdoor positions, powered and managed through a single PoE NVR.
• Choose a different kit if: You require more than 4 camera positions – a higher-channel NVR kit would be needed to expand beyond 4 cameras without adding a second recorder.
• Choose a different kit if: Your site requires long-range coverage beyond 30m IR/white light – a bullet-style camera with a varifocal lens and extended IR range would be better suited to large open yards or long fence lines.
• Choose a different kit if: You need recording storage included – this kit ships without a hard drive, so buyers who need a ready-to-record system straight out of the box should select and add a compatible surveillance-grade HDD at checkout.

FAQs

1. Can I mix 2.8mm and 4mm lenses across the 4 cameras in this kit?
   Yes. Each DS-2CD2367G3-LIS2UY/SL can be supplied in either 2.8mm or 4mm. If you need different lens options for individual camera positions, note your requirements in the order comments at checkout and the correct cameras will be picked and shipped accordingly.
2. What hard drive is needed and how much storage should I select?
   The DS-7604NI-M1/4P accepts a single 3.5″ or 2.5″ surveillance-grade HDD. For 4 cameras recording at 6MP resolution with H.265+ compression, a 4TB drive typically provides approximately 2 to 3 weeks of continuous recording depending on motion activity. An 8TB drive extends this to 4 to 6 weeks. Always use a surveillance-rated drive rather than a desktop model to handle the continuous write demands.

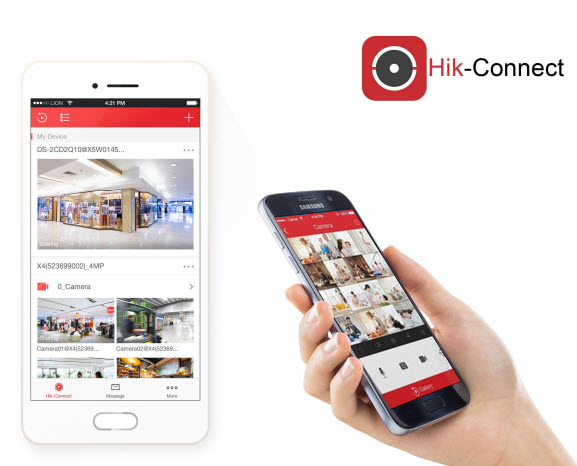

3. Does the kit support remote viewing on a smartphone?
   Yes. The DS-7604NI-M1/4P supports remote access through the Hik-Connect app on iOS and Android. You can view live camera feeds, play back recorded footage, and receive push notifications for human or vehicle detection alerts triggered by AcuSense 3.0 on any of the 4 cameras.
4. How does the Smart Hybrid Light work in practice?
   Each camera operates in infrared mode by default at night, which is discreet and does not produce visible light. When AcuSense 3.0 detects a human or vehicle, the camera can switch to white light illumination to capture full-colour footage of the event. This automatic switching means white light is only activated when relevant, preserving neighbourhood discretion and reducing unnecessary light exposure during quiet periods.
5. Do the cameras need a separate power supply or PoE injector?
   No. The DS-7604NI-M1/4P has 4 built-in PoE ports that both power and transmit data from each DS-2CD2367G3-LIS2UY/SL camera over a single Cat5e or Cat6 cable per camera. No separate PoE switch or power injector is required for a standard 4-camera installation.
6. What is the confirmed IR and white light range of each camera?
   Both the infrared and white light illuminators on the DS-2CD2367G3-LIS2UY/SL are rated to up to 30m. This is sufficient for most residential driveways, yard entries, and shopfront positions. For longer approaches beyond 30m, a different camera with extended illumination would be more appropriate.
7. Where can I find the datasheets for the cameras and NVR in this kit?
   Datasheets for both the DS-2CD2367G3-LIS2UY/SL camera and the DS-7604NI-M1/4P NVR are linked in the Additional Information section of this product page through Security Wholesalers. These confirm all sensor specifications, compression formats, PoE requirements, and NVR bandwidth limits referenced in this listing.

Cabling Considerations

• Cable Type: Cat5e or Cat6 ethernet cable is required for each camera to NVR run. Cat6 is recommended for longer cable runs or where future bandwidth upgrades may be required.
• Maximum PoE Cable Run: Standard PoE distance is 100m per run from the NVR’s PoE port to each camera. Runs exceeding this distance will result in power loss and signal degradation. Use a PoE extender if any camera position exceeds 100m from the NVR location.
• Wiring Tips: Run cable through weatherproof conduit where exposed to outdoor elements. Avoid sharp bends or stapling through the cable jacket. For wall-mounted turret cameras on brick or masonry, plan cable entry points before installation to avoid visible surface cabling. If different rooms or levels are involved, run cables to a central NVR location rather than daisy-chaining cameras.
