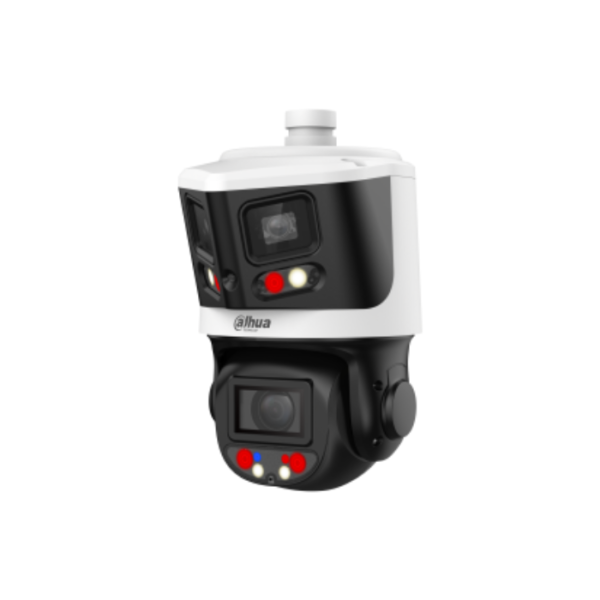

Dahua DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Panoramic & PTZ Security Camera

Wide-area monitoring across a large outdoor site normally demands a compromise: either broad context or zoomed detail, rarely both from a single device. The DH-SDT3E410-8P-MB-A-PV1 removes that trade-off by combining an 8MP fixed panoramic lens with a 4MP 10x optical zoom PTZ lens in one weatherproof housing, delivering simultaneous scene overview and targeted close-up capture without switching cameras or feeds. Built on the Dahua TiOC 2.0 platform, it adds active deterrence through red and blue flashing warning lights and a built-in siren that engage automatically when the AI perimeter protection detects a human or vehicle intrusion. Starlight technology supports colour imaging in low-light conditions, and PoE+ connectivity keeps cabling to a single Ethernet run. Rated IP67 and IK10, this camera is suited to industrial yards, commercial car parks, gated estates, and large public spaces where proactive, intelligent perimeter coverage is required around the clock.

Key Capabilities

Best For

• Industrial Sites and Warehouses: The dual-lens design oversees large facility grounds from a single mounting point while the 10x PTZ lens zooms in on activity at gates, loading docks, or perimeter fencing without losing the overview feed.
• Gated Communities and Residential Estates: Active deterrence with flashing lights and a siren provides a visible and audible security response at entry points and boundary zones, discouraging intrusion before it escalates.
• Commercial Car Parks: Smart auto-tracking follows vehicles and pedestrians across open areas while AI classification keeps alerts relevant, helping security teams respond to genuine incidents rather than constant false notifications.
• High-Value Asset Protection: Two-way audio, active deterrence, and local MicroSD storage up to 512GB combine to provide both real-time intervention capability and on-site evidence capture independent of network connectivity.
• Public Venues and Open Spaces: The 360-degree endless pan and 10x optical zoom allow a single installed camera to cover wide civic areas, monitoring movement across plazas, transport forecourts, or recreation zones without multiple fixed camera positions.

Why Choose the DH-SDT3E410-8P-MB-A-PV1

A standard PTZ camera gives you zoom and directional control, but the moment it rotates to track a subject, the wide-area view is gone. The DH-SDT3E410-8P-MB-A-PV1 solves this directly: the 8MP panoramic lens holds the full scene continuously while the 4MP PTZ lens tracks and zooms independently, so nothing outside the PTZ frame is missed during an event. That dual-lens architecture alone separates it from conventional PTZ installations. Layer on the TiOC 2.0 active deterrence system, which physically responds to intrusions with flashing lights and a siren rather than passively recording them, and the AI perimeter protection that filters human and vehicle targets from environmental noise, and this camera functions as both a surveillance tool and an active deterrent in a single weatherproof housing. The IP67 and IK10 ratings confirm it is built for demanding outdoor environments. Available through Krazy Tech Deals, it suits sites where a single intelligent camera position needs to carry significant monitoring responsibility.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your site requires simultaneous panoramic scene coverage and zoomed PTZ detail from a single mounting point, combined with AI perimeter protection, active deterrence, and Starlight low-light performance for a demanding outdoor environment.
• Choose a different model if: Your coverage requirement is a single fixed view without the need for optical zoom or auto-tracking. In that scenario, a fixed IP camera will cost less to purchase and install while still delivering high-resolution footage for the area in question.
• Choose a different model if: Your switch infrastructure only supports standard PoE (802.3af) and you cannot upgrade to PoE+ or provide a DC 24V supply at the installation point, as this camera will not receive sufficient power to operate all features under 802.3af.

FAQs

1. How do the two lenses on the DH-SDT3E410-8P-MB-A-PV1 work together?
   The 8MP fixed lens provides a continuous wide-angle panoramic feed of the full scene. The 4MP PTZ lens operates independently, allowing operators or the auto-tracking system to zoom in on specific subjects using 10x optical zoom while the panoramic view remains uninterrupted. Both feeds are available simultaneously from the single camera housing.
2. What does the active deterrence system actually do when triggered?
   When the AI perimeter protection detects a human or vehicle entering a configured detection zone, the camera can automatically activate red and blue flashing warning lights and sound the built-in siren. These responses are intended to interrupt suspicious behaviour on-site rather than waiting for a human operator to respond. The sensitivity and activation thresholds are configurable during installation.
3. Is the auto-tracking feature fully automatic or does it require manual activation?
   Smart auto-tracking on the DH-SDT3E410-8P-MB-A-PV1 is designed to activate automatically when a subject enters the detection zone, allowing the PTZ lens to follow the target without operator input. Manual PTZ control remains available at any time through compatible Dahua NVR interfaces or management software.
4. What power supply does this camera need and why does it matter?
   The camera requires PoE+ (802.3at) or DC 24V. Standard PoE (802.3af) delivers a maximum of 15.4W, which is insufficient to power the active deterrence components alongside the dual-lens system simultaneously. Confirm that your network switch or PoE injector is rated to 802.3at before installation to avoid partial feature operation.
5. Can this camera record footage if the network goes down?
   Yes. The DH-SDT3E410-8P-MB-A-PV1 includes a MicroSD card slot supporting cards up to 512GB. Local on-camera recording operates independently of NVR connectivity, ensuring footage is captured during network outages, power disruptions to the recorder, or intentional cable tampering at the site perimeter.
6. Will this camera work with a third-party NVR?
   ONVIF support allows basic integration with many third-party NVR systems. However, advanced functions including AI auto-tracking, active deterrence triggers, perimeter protection zone configuration, and TiOC features are fully accessible only through Dahua-compatible recorders or software platforms such as Smart PSS or DSS Express. Third-party integration will typically support video streaming only.
7. Where can I source the DH-SDT3E410-8P-MB-A-PV1 in Australia?
   This camera is part of the Krazy Tech Deals range, an Australian supplier of professional CCTV and security equipment. A downloadable datasheet is also available to assist with pre-installation planning, system design, and confirming compatibility with existing infrastructure before purchase.
