8MP Hikvision COLORVU Hybrid CCTV Kit: 10 x Liveguard Cameras + 16CH 4K (4TB HDD) M Series NVR – Strobe Light, Two-way Audio, Alarm Cameras & 16 Channel NVR CCTV Kit

For large homes, commercial premises, and multi-entry sites that require active deterrence alongside full-colour night monitoring, this 10-camera Hikvision ColorVu Hybrid kit delivers a complete 8MP surveillance system built around the DS-2CD2387G2H-LISU/SL turret camera and DS-7616NI-M2-16P 16-channel PoE NVR. Featuring Smart Hybrid Light technology, each camera automatically switches between infrared and white light based on motion detection, delivering colour footage when activity is detected while maintaining discreet IR operation at all other times. Equipped with a F1.0 Super Aperture and Super Confocal Lens, the cameras capture sharp colour detail even in near-darkness. Each unit also includes a built-in microphone, speaker, and strobe light, enabling real-time audio recording and active deterrence. The DS-7616NI-M2-16P NVR provides 16 PoE ports, 4TB pre-installed storage, 4K output support, H.265+ compression, and remote mobile viewing, making this a ready-to-deploy kit for sites needing broad, intelligent outdoor coverage.

Key Capabilities

Best For

• Large Residential Properties: 10 cameras with 40m IR and 2.8mm or 4mm lens options allow homeowners to cover multiple entry points, driveways, side gates, and yard perimeters from a single 16-channel NVR.
• Small to Medium Commercial Sites: The combination of AcuSense detection and active deterrence makes this kit suited to retail premises, warehouses, service yards, and office buildings needing both monitoring and on-site alarm response.
• Outdoor Perimeter Monitoring: IP67-rated housings and 40m IR range allow cameras to be mounted at eaves, soffits, gate posts, and fence lines exposed to weather, with reliable visibility across long outdoor approaches.
• Sites Needing Colour Evidence After Dark: The F1.0 Super Aperture and Smart Hybrid Light ensure full-colour footage is captured during detection events, delivering usable colour evidence at night without relying solely on white light illumination.
• Installers Deploying Multi-Camera PoE Systems: The 16 built-in PoE ports on the DS-7616NI-M2-16P eliminate the need for a separate PoE switch, simplifying cable management and reducing equipment costs on commercial installations.

Why Choose the DS-2CD2387G2H-LISU/SL + DS-7616NI-M2-16P 10-Camera Kit

Where a standard 8MP kit records what happens, this system is designed to respond to it. The DS-2CD2387G2H-LISU/SL brings together Smart Hybrid Light, AcuSense detection, a strobe, a speaker, and a built-in microphone in a single IP67 outdoor turret housing – functionality that would otherwise require separate deterrent hardware. The F1.0 Super Aperture and Super Confocal Lens deliver colour imaging in very low light without forcing white light to remain active all night. Paired with the DS-7616NI-M2-16P’s 16 integrated PoE ports and 4TB pre-installed HDD, the system arrives ready to deploy without sourcing additional switches or drives. The 6 remaining NVR channels also provide room to expand coverage later. Available at Security Wholesalers, this kit suits buyers who need verified detection, active deterrence, and colour night evidence from a single cohesive system.

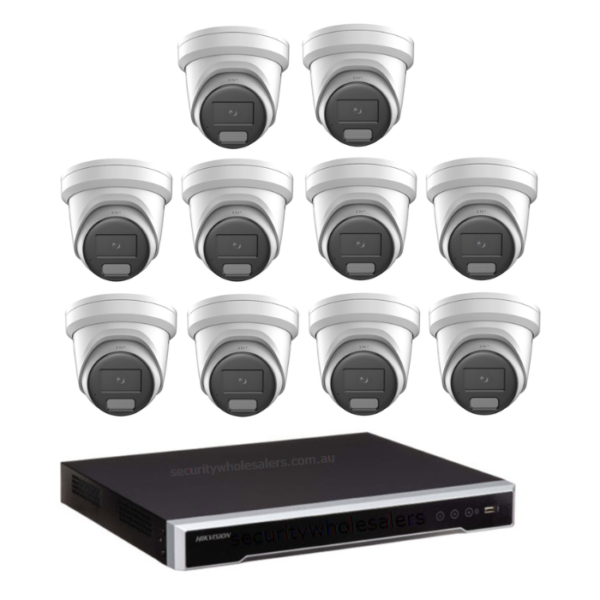

Package Inclusions

• 10 x Hikvision DS-2CD2387G2H-LISU/SL 8MP Smart Hybrid Light ColorVu Turret Camera – 8MP outdoor turret camera with built-in microphone, strobe light, speaker, 40m IR, IP67, available in 2.8mm or 4mm lens
• 10 x Weatherproof RJ45 connectors
• 1 x Hikvision DS-7616NI-M2-16P 16CH PoE NVR – 16-channel NVR with 16 PoE ports, 4TB pre-installed HDD, 4K output support, H.265+ compression
• 1 x HDMI cable, USB mouse, power supply and accessories

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this kit if: You need to cover 10 outdoor locations with 8MP colour night vision, AcuSense detection, and active deterrence from a single NVR, and you want built-in PoE, 4TB storage, and room to expand to 16 cameras without adding a separate switch.
• Choose a different model if: Your site requires fewer than 10 cameras and a smaller NVR footprint – a 4 or 8 camera kit with an 8-channel NVR would reduce hardware cost and complexity where full 16-channel capacity is not needed.
• Choose a different model if: Long-range directional coverage of a single approach or fence line is the priority – a bullet camera with extended IR range is better suited to that specific scenario than a turret housing optimised for wide-angle eave and soffit mounting.

FAQs

1. How does Smart Hybrid Light work on the DS-2CD2387G2H-LISU/SL cameras in this kit?
   By default, the camera operates in infrared mode to avoid unnecessary light output. When AcuSense detects a person or vehicle entering the scene, the camera switches to white light to produce full-colour footage of the event. Once the subject exits the frame, the camera returns to IR automatically. This means colour footage is captured when it matters most, without white light remaining on all night.
2. Does the kit include everything needed to get started, or do I need to purchase cables separately?
   The kit includes the 10 cameras, the DS-7616NI-M2-16P NVR with 4TB pre-installed HDD, 10 weatherproof RJ45 connectors, an HDMI cable, USB mouse, and power supply with accessories. You will need to supply your own Cat5e or Cat6 network cable runs between the NVR and each camera location, as cable lengths vary by installation.
3. Can I mix lens sizes across the 10 cameras in this kit?
   Yes. The DS-2CD2387G2H-LISU/SL is available in 2.8mm and 4mm fixed lens variants. If you need a mix of lens sizes across the 10 cameras to suit different mounting positions, add a note in the order comments at checkout specifying which cameras require which lens and the correct units will be shipped accordingly.
4. How many days of recording will the 4TB HDD support across 10 cameras at 8MP?
   With H.265+ compression enabled on the DS-7616NI-M2-16P, 4TB of storage will typically support between 7 and 14 days of continuous recording across all 10 cameras at 8MP. The exact figure depends on frame rate settings, motion frequency, and whether motion-triggered or continuous recording is configured. Higher activity sites will consume storage more quickly.
5. Does the DS-7616NI-M2-16P NVR support remote viewing on a mobile device?
   Yes. The DS-7616NI-M2-16P supports remote live view and playback via Hikvision’s mobile app, allowing authorised users to monitor all 10 camera feeds and review recorded footage from a smartphone or tablet over a network connection. This functionality is built into the NVR’s software without requiring a subscription service.
6. What is the weather rating on the cameras and can they be mounted fully exposed outdoors?
   The DS-2CD2387G2H-LISU/SL carries an IP67 rating, meaning the camera housing is fully dust-tight and protected against water immersion up to 1 metre. The cameras are designed for permanent outdoor installation on eaves, soffits, wall brackets, and gate posts without requiring additional weatherproofing enclosures. Available through Security Wholesalers, the kit is suited to Australian outdoor conditions.
7. The NVR has 16 channels but the kit includes 10 cameras. Can I add more cameras later?
   Yes. The DS-7616NI-M2-16P has 16 PoE ports and supports up to 16 cameras, so 6 channels remain available for future expansion. Additional Hikvision IP cameras compatible with the NVR can be connected at any time without replacing the recorder, making this kit a practical choice for staged rollouts or sites where coverage requirements may grow.
