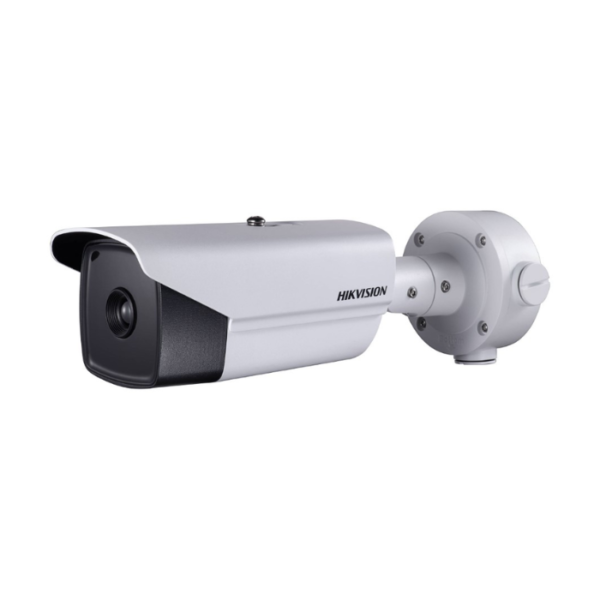

Hikvision DS-2TD2137 35/V1 DeepInView Thermal Bullet Camera, IP66 384×288

SKU: DS-2TD2137‌-35/V1-2

Smart Function (Thermal Imaging)

Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 35mk (@25°C,F#=1.0)
Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
Reliable temperature exception alarm function
Advanced fire detection algorithm

Thermal Imaging Module Function

384*288 resolution, high sensitivity sensor, support contrast adjustment
Shutter adjustment in various modes
3D DNR, 15 palettes of color adjustable, image detail enhancement

This device is not a medical device and not TGA approved.

3-4 week lead time on this camera

$7,094.00

Description

Thermal Module
Image sensor:		Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution:		384*288
Detector Pitch:		17um
Response Wavebond:		8um to 14um
NETD:		< 35mk(@25°C,F#=1.0)
Lens (focal length):		35mm
MRAD:		0.49 mrad
Field of View:		10.66°x 8.002°
Min. Focusing Distance:		40m
F number:		1.0

Smart Function
VCA:		Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA rules
Temperature Measurement:		Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
Temperature Range:		-20 ° C to 150 ° C (-4 ° C to 302 ° F)
Temperature Accuracy:		±8 ° C (14.4 ° F)
Fire Detection:		Support 10 fire points

Network
Main Stream:		50fps(384 × 288)
Sub Stream:		50fps(384 × 288)
Third Stream:		50fps(384 × 288)
Video Compression:		H.265/H.264/MJPEG, H.265+, H.264+ encoding with Baseline/Main/High Profile
Audio Compression:		G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP,RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous live view:		Up to 20-ch
User/Host Level:		Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures:		User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Alarm Input:		2-ch Inputs (0-5V DC)
Alarm Action:		Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Alarm Output:		2-ch relay outputs, alarm response actions configurable
Audio Input:		1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output:		Linear Level; Impedance: 600Ω
Communication Interface:		Built-in RJ45; 10M/100M Ethernet Interface
Onboard Storage:		Built-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording
Ethernet:		1 RJ45 10M/100M Self-adaptive Ethernet interface
Analog Video Output:		1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application Programming:		Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client:		iVMS-4200
Web Browser:		IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)

General
Power Consumption:		24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.7 A, max. 8W (20W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.4 A to 0.5 A
Power:		24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
Menu Language:		English
Working Temperature/ Humidity:		From -40 ° C to 65 ° C (-40 ° F to 149 ° F); Humidity: 90% or Less
Protection Level:		IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions:		352.4mm × 113.5mm × 113mm (13.9″ × 4.45″ × 4.45″)
Weight:		2kg (4.41lb)

Smart Functions Range
Lens (focal length):		35mm
VCA range (Vehicles):		1050m
VCA range (humans):		350m
Temperature measurement (Object:2*2m):		819m
Temperature measurement (Object:1*1m):		413m
Fire Detection (Object:2× 2 m):		2058m
Fire Detection (Object:1× 1 m):		1029m

Wide Range Coverage
Lens (focal length):		35mm
Detection range (Vehicles):		3157m
Detection range (Humans):		1029m
Recognition range (Vehicles):		789m
Recognition range (Humans):		257m
Identification range (Vehicles):		395m
Identification range (Humans):		129m
