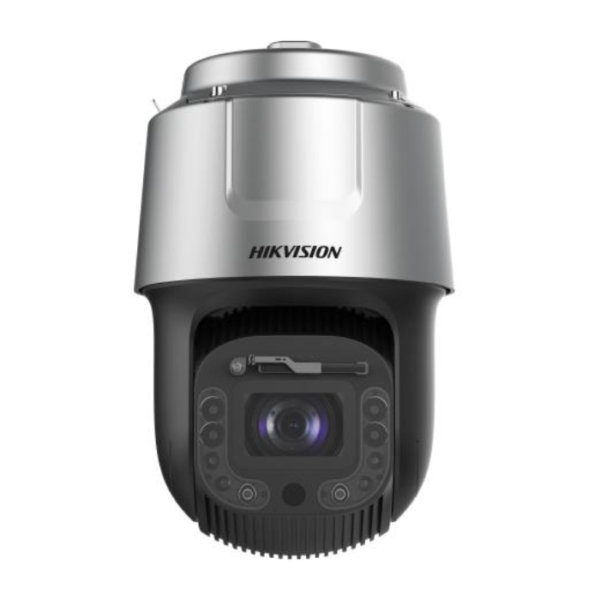

Hikvision DS-2DF8C842IXG1-ELWY 4K 42x DarkFighter IR Network PTZ Dome

For large-site installations where a single camera must cover expansive outdoor zones and still resolve distant detail, the DS-2DF8C842IXG1-ELWY PTZ speed dome is built to meet that demand. Mounted on perimeter walls, rooftops or elevated poles across transportation hubs, seaports, critical infrastructure sites and large industrial yards, it combines an 8MP 4K resolution 1/1.2-inch progressive-scan CMOS sensor with a 42x optical zoom lens spanning 7.5 to 315mm. DarkFighter 2.0 low-light imaging maintains colour footage at approximately 0.0005 Lux, while the integrated IR illumination reaches up to 500m. A 140dB adaptive wide dynamic range handles demanding backlit and high-contrast conditions. Equipped with face capture and vehicle detection analytics, along with a rugged IP67 and IK10-rated housing that operates from -40 degrees C to +70 degrees C, the DS-2DF8C842IXG1-ELWY is designed for mission-critical outdoor surveillance where zoom range, image quality and durability all matter simultaneously.

Key Capabilities

Best For

• Critical Infrastructure Perimeters: The combination of 42x optical zoom, 500m IR and face capture analytics supports the identification of individuals and vehicles approaching secured boundaries at airports, utilities and government facilities.
• Large Industrial and Port Sites: PTZ patrol scanning and 8MP resolution allow a single installed unit to monitor wide yard areas, vessel berths or loading zones that would otherwise require multiple fixed cameras to cover adequately.
• Transport Hubs and Traffic Monitoring: The 315mm telephoto end provides sufficient reach to read vehicle details across multi-lane roadways, interchange approaches or terminal entry and exit points from a single elevated mount.
• Exposed Outdoor Installations: IP67 and IK10 protection combined with the -40 to +70 degree operating range ensures uninterrupted operation in coastal zones, industrial yards and environments subject to physical impact or extreme weather.
• High-Security Campuses and Stadiums: The wide-area pan coverage with on-demand telephoto zoom allows security operators to maintain situational awareness across large open areas while tracking specific subjects in real time.

Why Choose the DS-2DF8C842IXG1-ELWY

Where a standard fixed or varifocal camera provides a single static view, the DS-2DF8C842IXG1-ELWY delivers dynamic, operator-controlled coverage across an entire site perimeter from one mounting point. The 42x optical zoom preserves 8MP resolution throughout its entire focal range, so distant subjects are genuinely identifiable rather than merely visible. DarkFighter 2.0 with 500m IR means night-time coverage extends across areas that fixed cameras simply cannot reach without additional infrastructure. The 140dB AWDR prevents the washed-out or blacked-out frames common at high-contrast outdoor locations. Face capture and vehicle detection analytics add an intelligence layer suited to high-security deployments. Built to IP67 and IK10 with a -40 to +70 degree operating range, it handles environments that would shorten the life of standard PTZ units. The DS-2DF8C842IXG1-ELWY is available through Security Wholesalers and is suited to integrators specifying PTZ solutions for large-scale or mission-critical projects.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: Your site requires a single camera to dynamically cover a large outdoor area with operator-controlled or auto-tracked zoom, 8MP 4K resolution is needed for identification at distance, and the location is exposed to extreme temperatures or requires IK10-rated impact resistance.
• Choose a different model if: Your application only requires fixed coverage of a defined zone. A fixed or varifocal camera will deliver continuous uninterrupted recording of that zone without the risk of the PTZ being positioned elsewhere when an event occurs. For smaller sites or tighter budgets, a fixed 4K camera at a confirmed angle will often outperform a PTZ in set-and-forget scenarios.

FAQs

1. What does the IK10 rating cover on the DS-2DF8C842IXG1-ELWY?
   The IK10 rating applies to the main housing body and indicates resistance to impacts of up to 20 joules. The dome bubble itself is excluded from the IK10 rating. Installers should factor this into mounting decisions at sites where physical tampering or accidental impact to the dome is likely, such as low-clearance industrial environments or publicly accessible poles.
2. How does the 500m IR range work at high zoom levels?
   The integrated IR illumination on the DS-2DF8C842IXG1-ELWY is motorised and adjusts automatically to match the zoom position, concentrating the IR beam as the lens narrows toward 315mm telephoto. This means effective IR illumination is maintained at long range when zoomed in, rather than flooding a wide area uselessly while the lens is pointed at a narrow distant scene.
3. What analytics does the DS-2DF8C842IXG1-ELWY support?
   The camera supports face capture and vehicle detection as confirmed by the product specifications. These analytics are suited to high-security applications where monitoring systems need to flag specific event types at perimeter access points or approach roads without relying solely on operator attention.
4. Can this camera be used in very cold outdoor environments?
   Yes. The operating temperature range of -40 degrees C to +70 degrees C means the DS-2DF8C842IXG1-ELWY is suited to high-altitude, alpine or far-northern installations where standard PTZ units rated only to -10 or -20 degrees C would fail to operate reliably during winter conditions.
5. Does the 42x optical zoom mean I can read vehicle details at long distance?
   At full 315mm telephoto with 8MP resolution, the camera provides sufficient detail for vehicle identification at extended ranges under good lighting or with IR support. Actual usable identification range will depend on lighting conditions, subject contrast, atmospheric clarity and how the camera is configured within your VMS or NVR recording platform.
6. What recording platform does the DS-2DF8C842IXG1-ELWY require?
   The camera connects over a standard IP network and is compatible with Hikvision NVR platforms and ONVIF-compliant VMS software. Because it streams at 8MP 4K resolution, the recording platform must support 4K decoding and the storage system must be sized to accommodate the higher bitrates compared to standard 2MP or 4MP PTZ cameras. Confirm channel compatibility with your NVR specification before installation.
7. Where can I source the DS-2DF8C842IXG1-ELWY in Australia?
   The DS-2DF8C842IXG1-ELWY is supplied through Krazy Tech Deals as part of the Hikvision Ultra-Series PTZ range. A product datasheet is available for download to assist with pre-installation planning and specification review. Contact the Krazy Tech Deals team for current pricing, stock availability and project quantity enquiries.
